With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

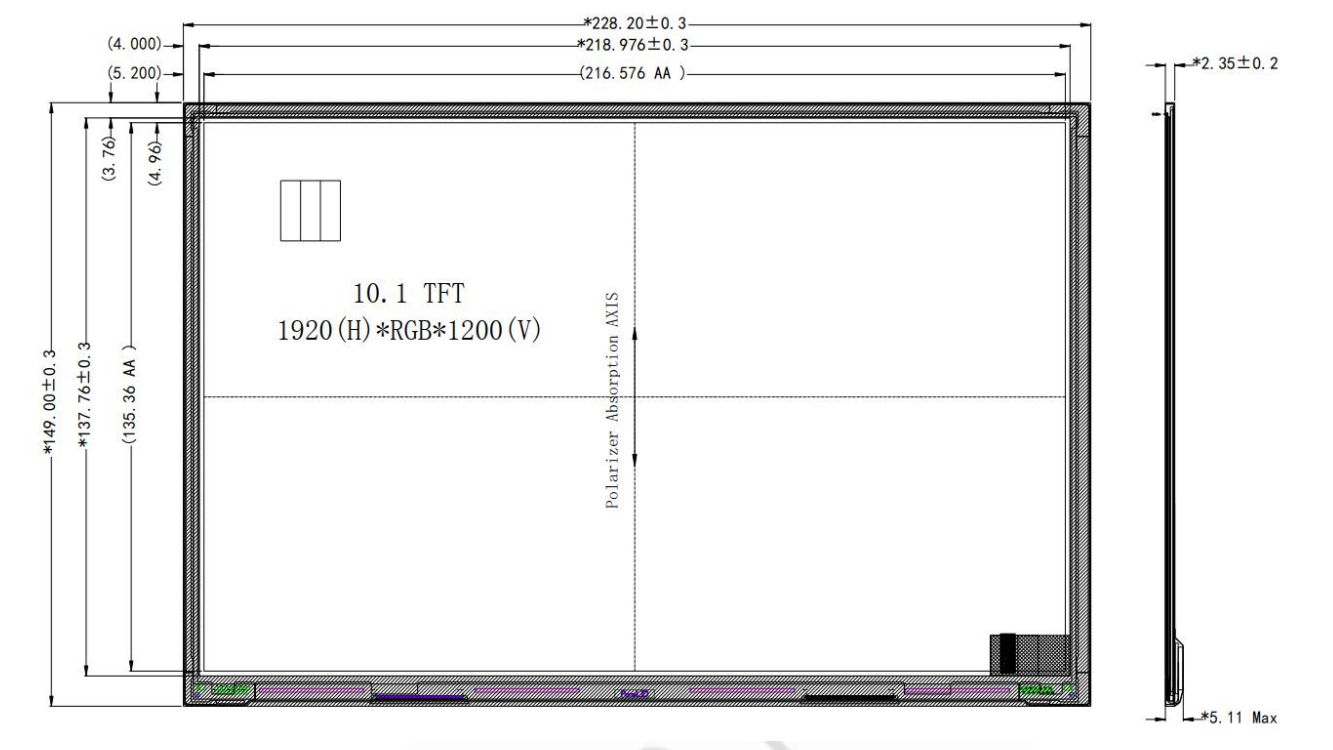

| High Resolution 10.1 inch TFT LCD Display For medical devices TFT-H101D16WUIWZKN30 | TFT Display | 1920x1200 |
|
228.2x149x2.35 | 10.1 | 10.1 | 216.576x135.36 | IPS | 1000cd/m2 | FFC-30 pin | eDP | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 10.1 inch TFT LCD Display With LVDS Interface TFT-H101A19HDINV5N40 | TFT Display | 800x1280 |
|
142.9x228.5x2.67 | 10.1 | 10.1 | 135.36x216.576 | IPS | 500cd/m2 | 40 PIN | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | NV3051F | |

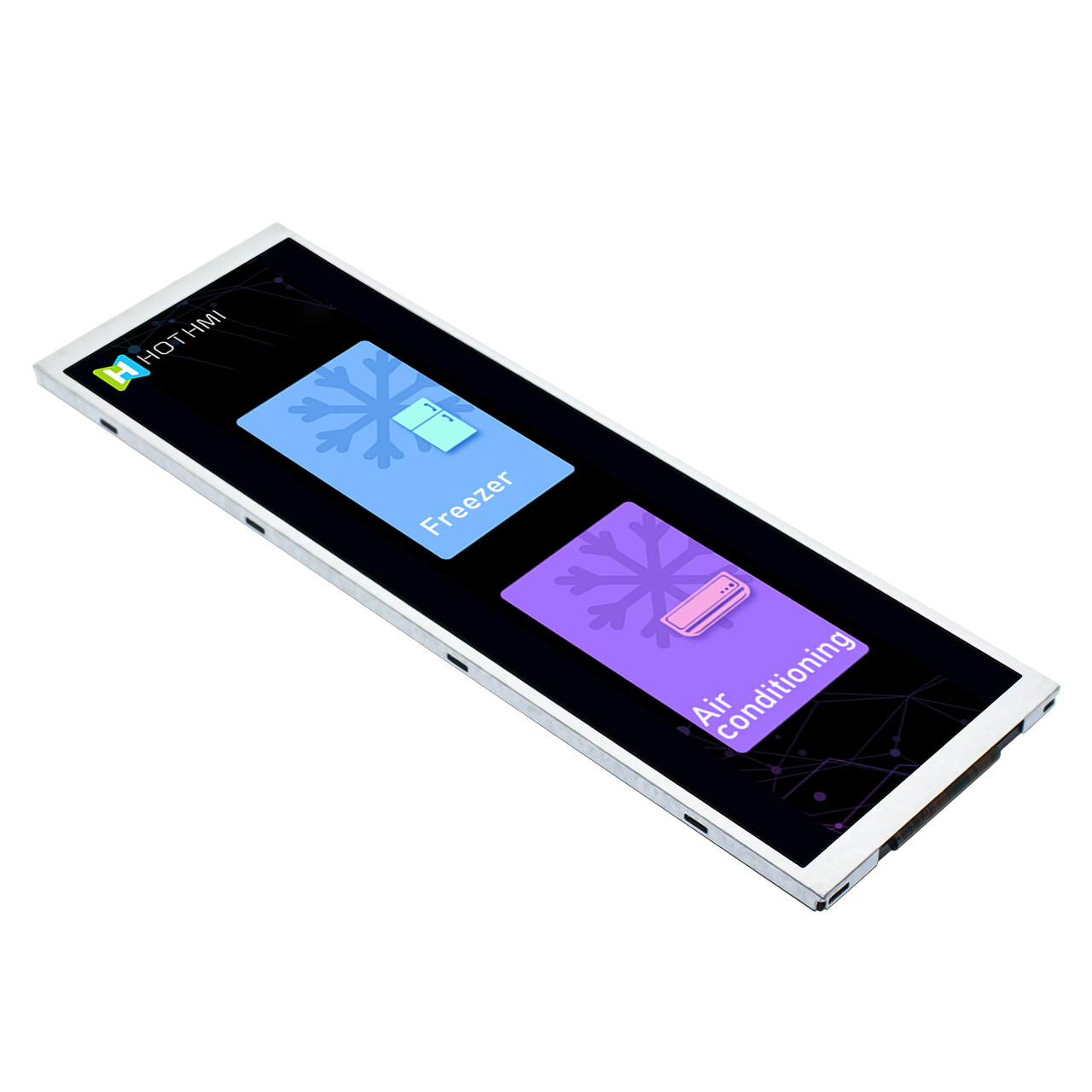

| 4 inch TFT LCD With 480x128 Resolution Bar Display TFT-H040A29WQISTKN40 | TFT Display | 480x128 |
|
105.5x38.8x2.85 | 4.0 | 4.0 | 95.04x25.34 | IPS | 1100cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7282A | |

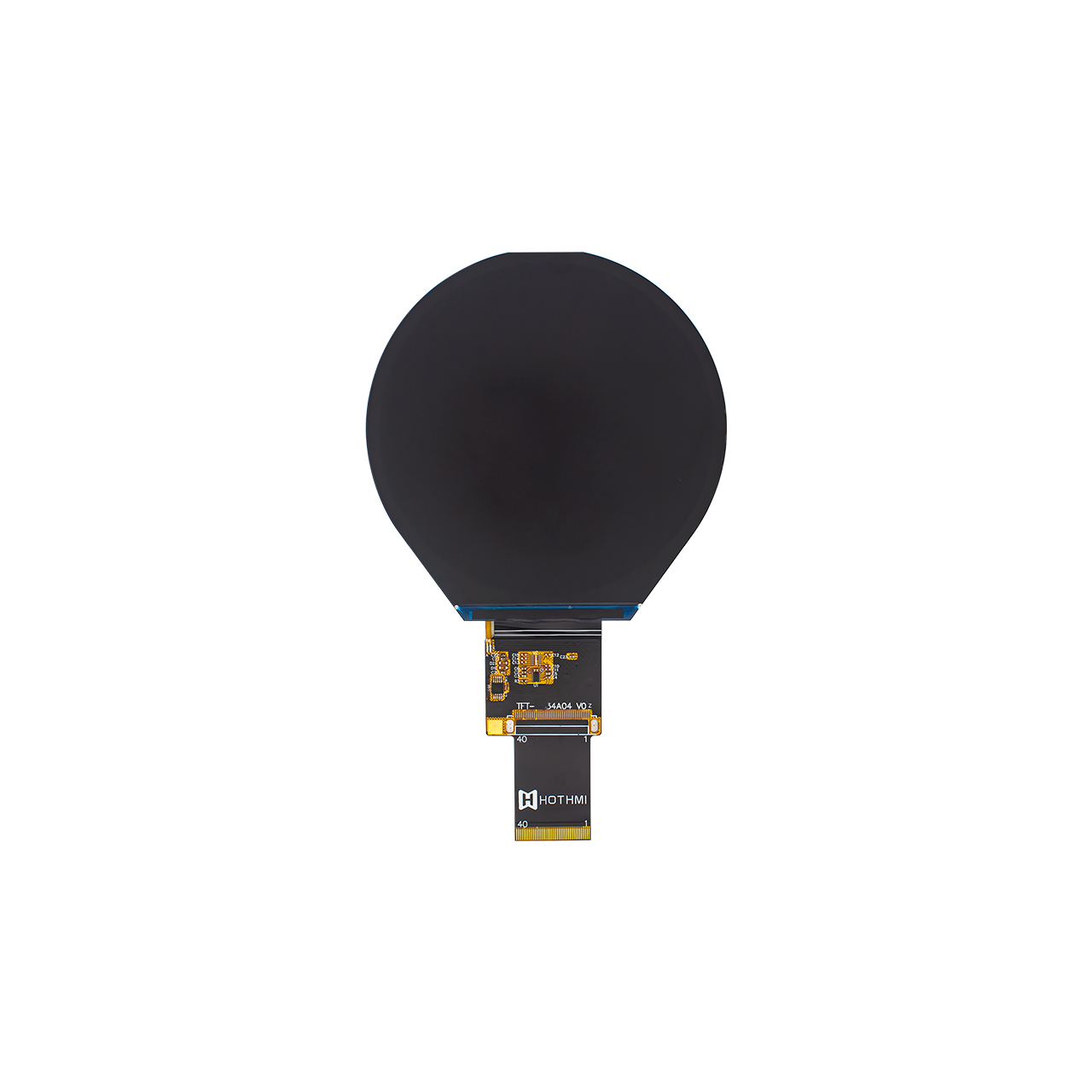

| 3.4 inch Round TFT LCD Display for outdoor With 800x800 Resolution TFT-H034A04ZJIGCKN40 | TFT | 800x800 |
|
94.9x96.95x2.2 | 3.4 | 3.4 | 87.6x87.6 | IPS | 1100cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||

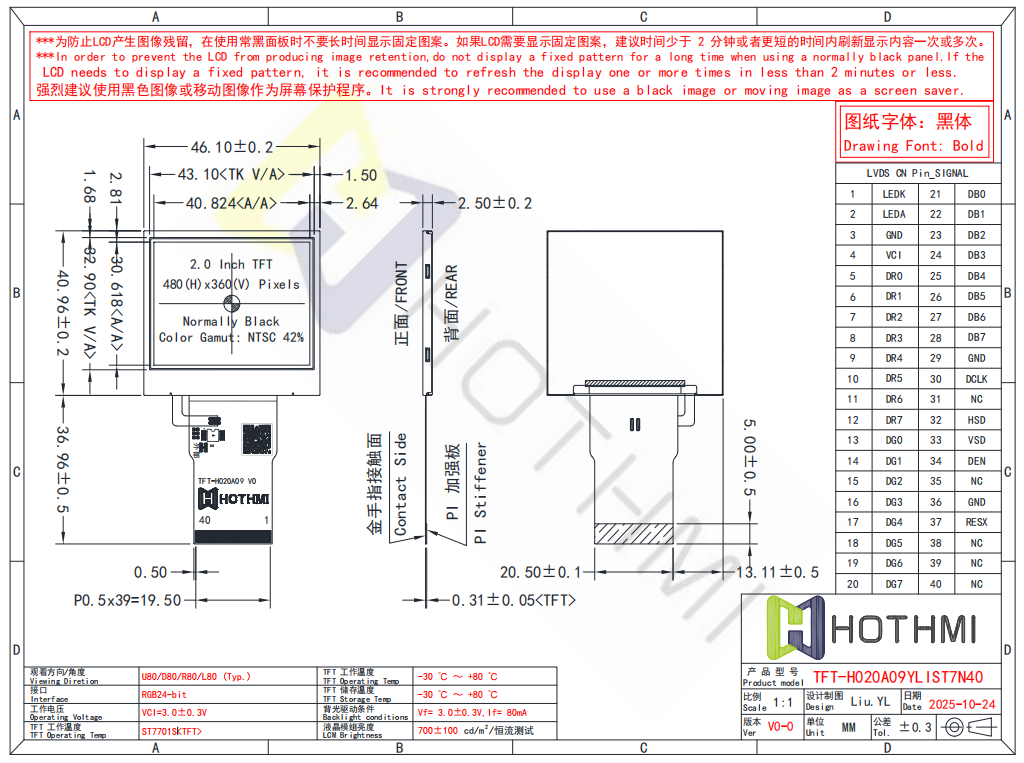

| 2 Inch 480x360 TFT LCD Display With RGB Interface TFT-H020A09YLIST7N40 | TFT | 480x360 |
|
46.1x40.96x2.5 | 2.0 | 2.0 | 40.824x30.618 | IPS | 700cd/m2 | 40 PIN | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7701S | |

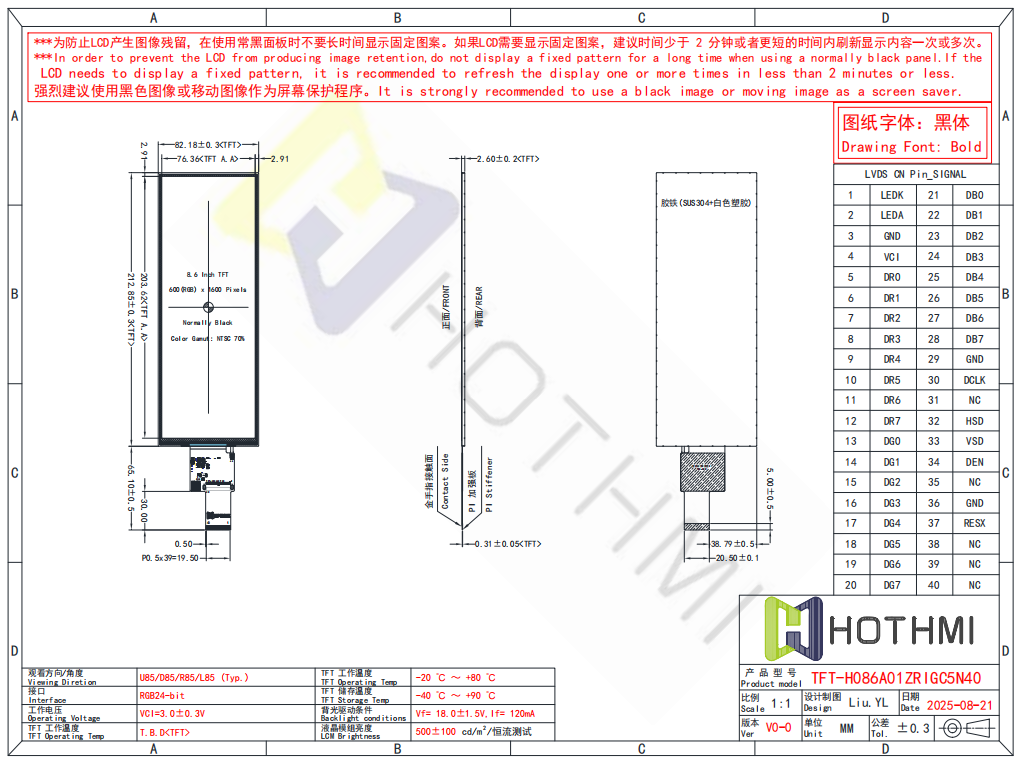

| 8.6 inch TFT LCD Display With 600x1600 Resolution RGB Interface TFT-H086A01ZRIGC5N40 | TFT Display | 600x1600 |
|
82.18x212.85x2.6 | 8.6 | 8.6 | 76.36x20.362 | IPS | 500cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | GC9704 | |

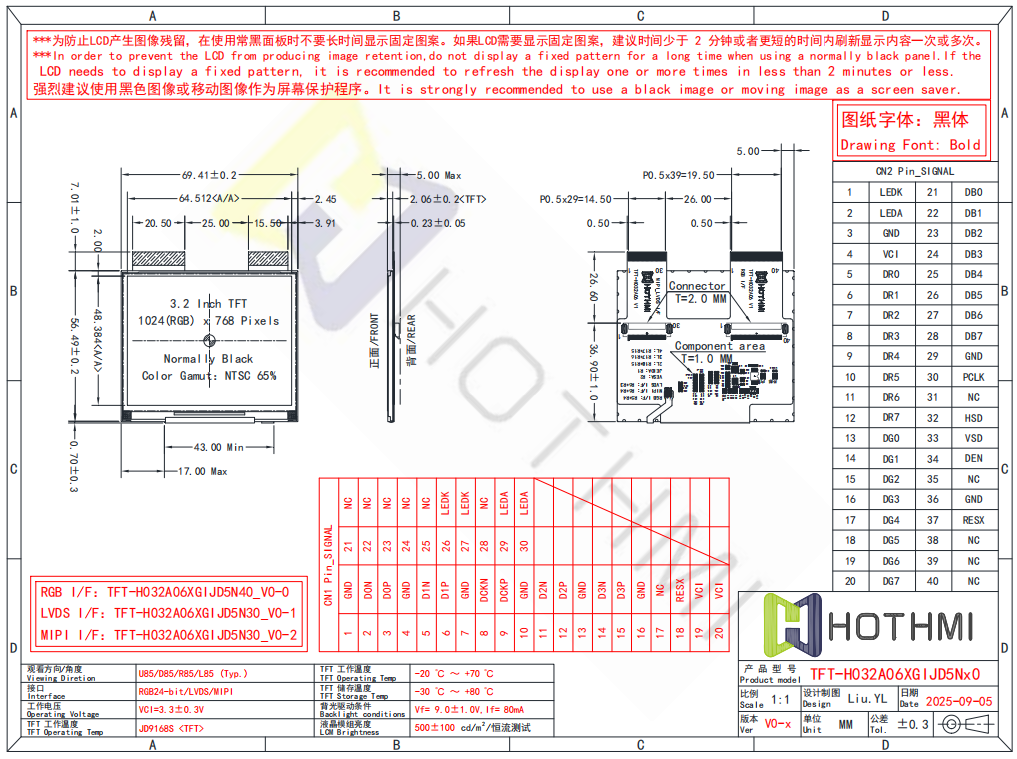

| 3.2 inch TFT Display With 1024x768 Resolution TFT-H032A06 XGIJD5Nx0 | TFT Display | 1024x768 |
|
69.41x56.49x5.0 | 3.2 | 3.2 | 64.512x48.384 | IPS | 500cd/m2 | FPC-40 pin | RGB/LVDS/MIPI | +3.3V | JD9168S | |||

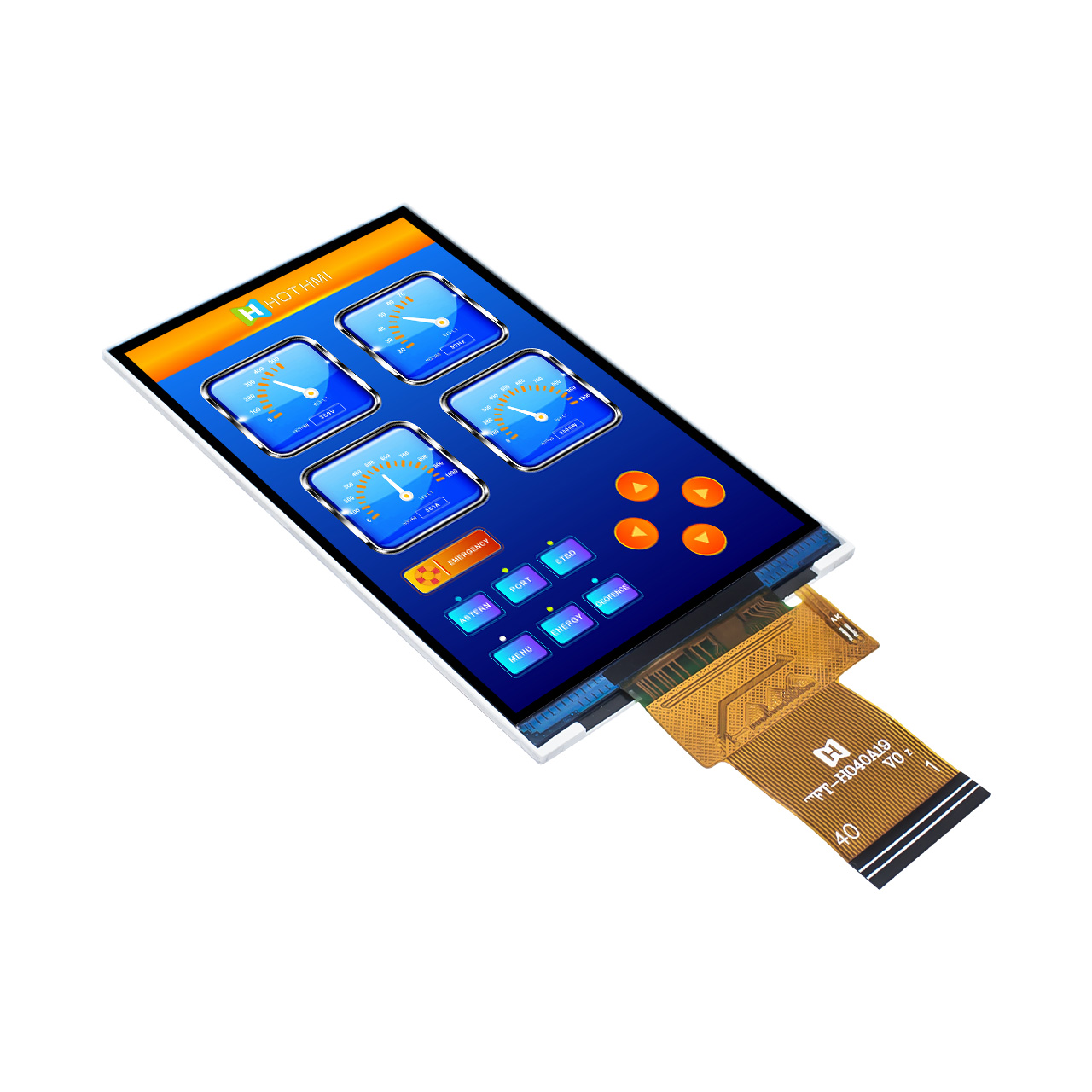

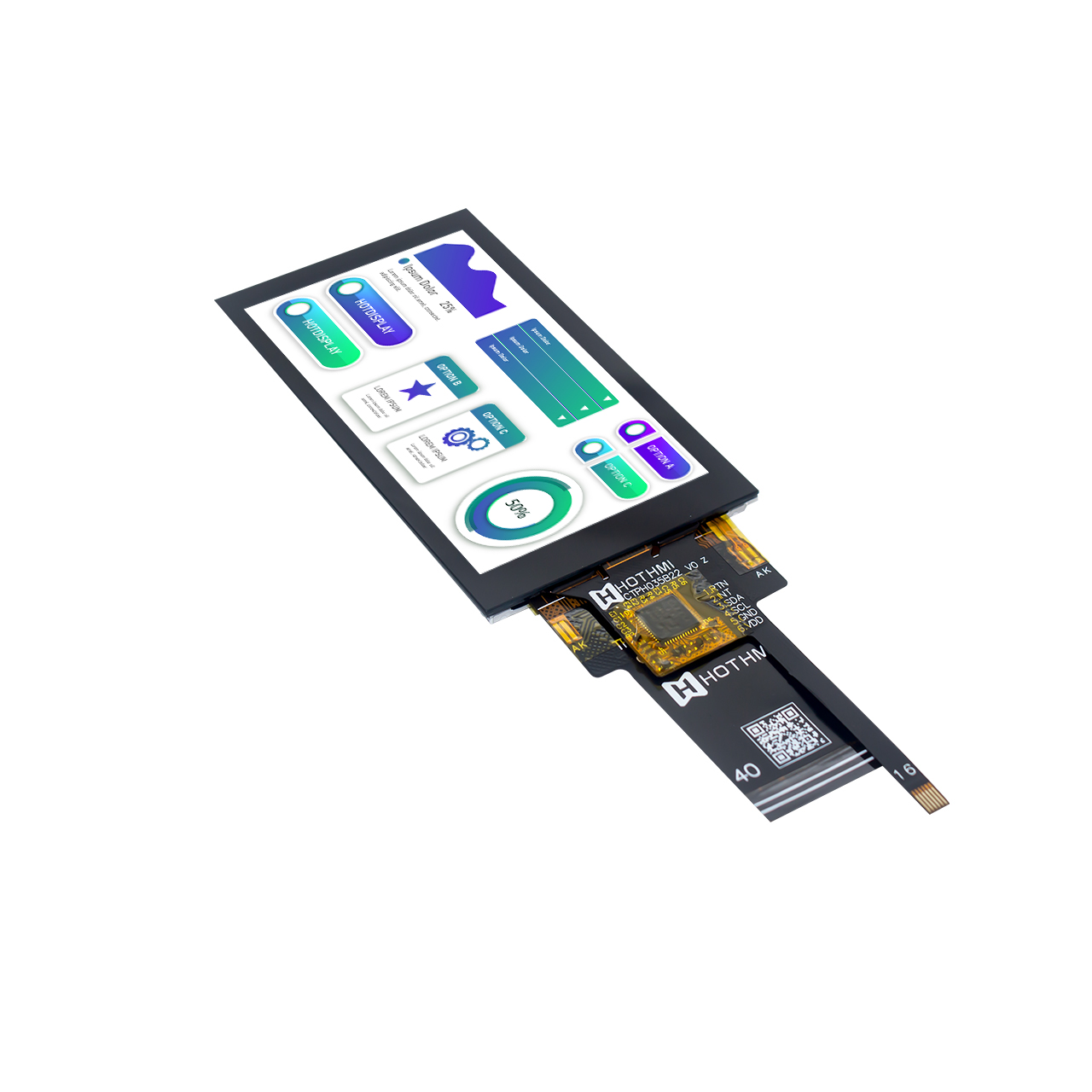

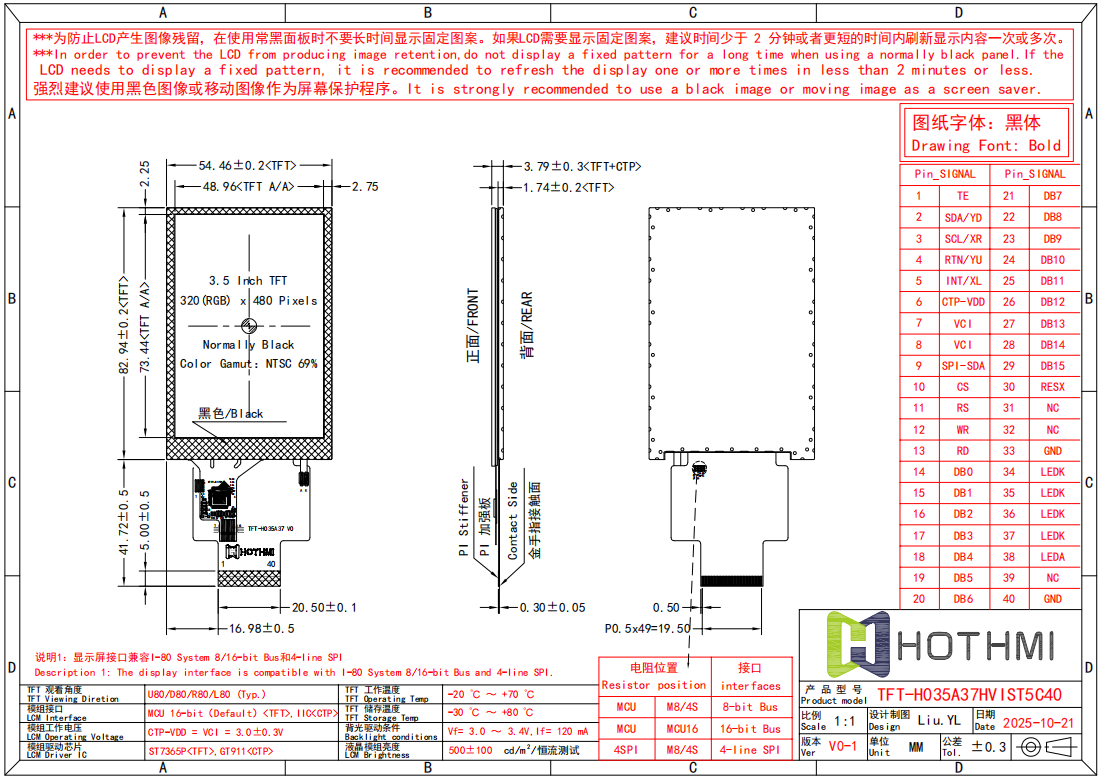

| 3.5 Inch Capacitive Touch TFT LCD Display With MCU Interface TFT-H035A37HVIST5C40 | TFT Display | 320x480 |
|
54.46x82.94x3.79 | 3.5 | 3.5 | 48.96x73.44 | IPS | 500cd/m2 | 40 PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7365P | |

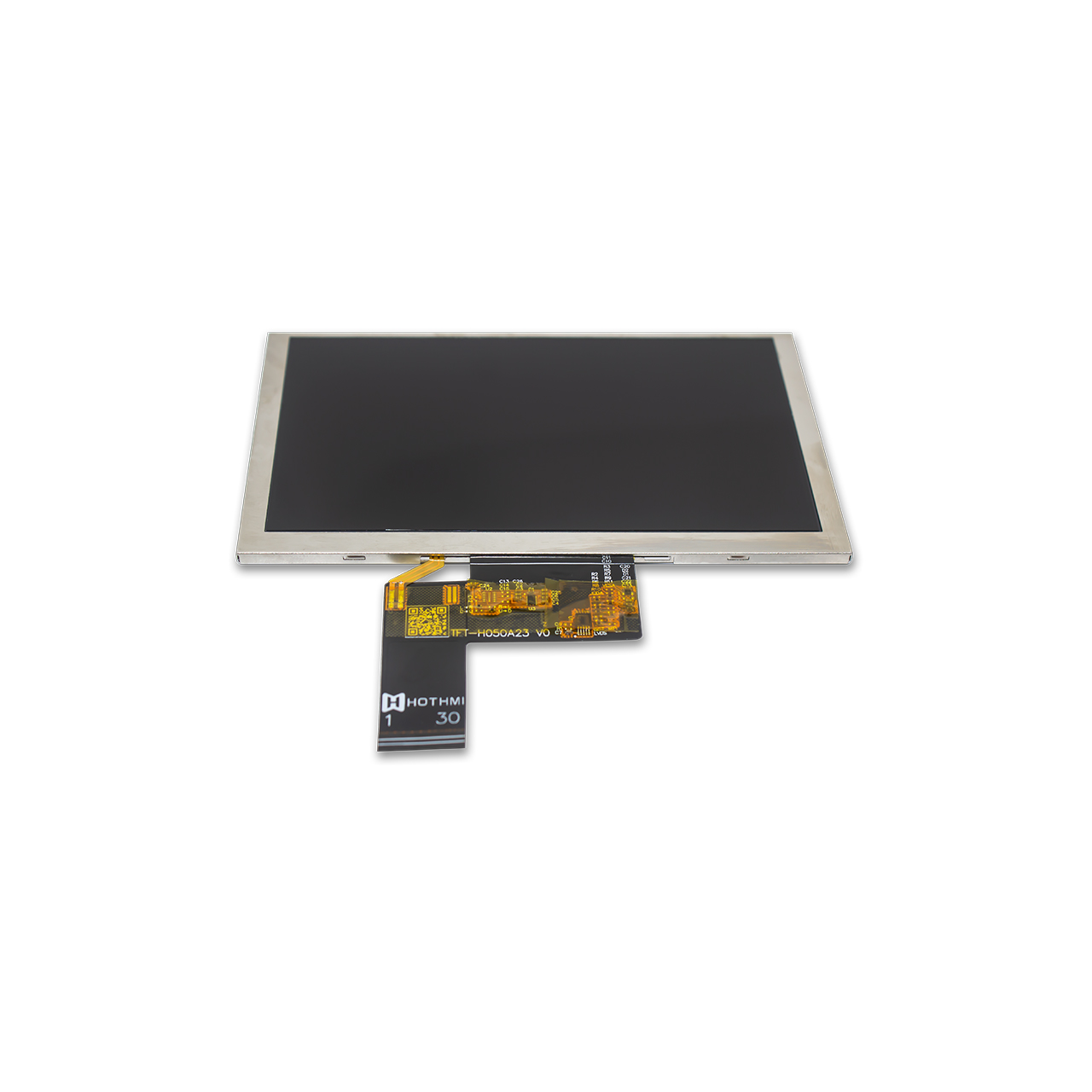

| 5 Inch High Brightness TFT LCD Display With MIPI DSI Interface TFT-H050A23SVIGHGN50 | TFT Display | 800x480 |
|
120x75.8x2.9 | 5.0 | 5.0 | 108x64.8 | IPS | 1500cd/m2 | 30 PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ||

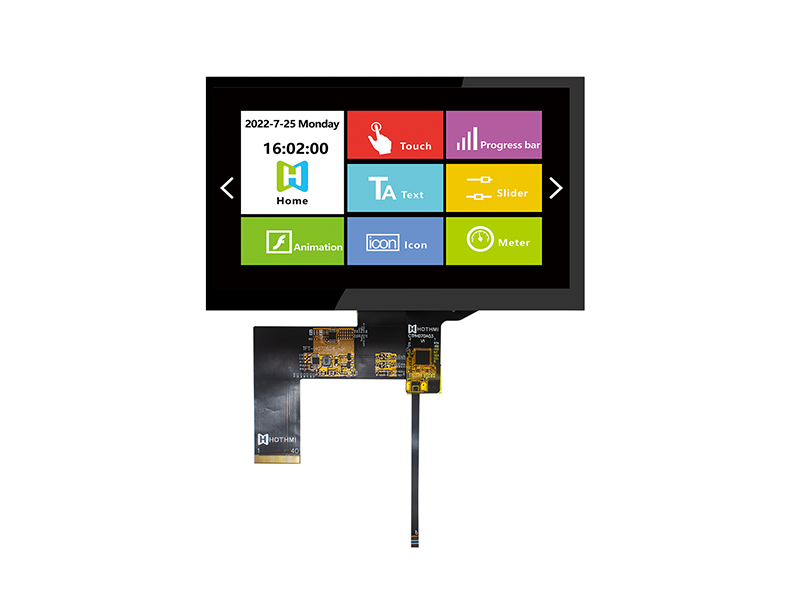

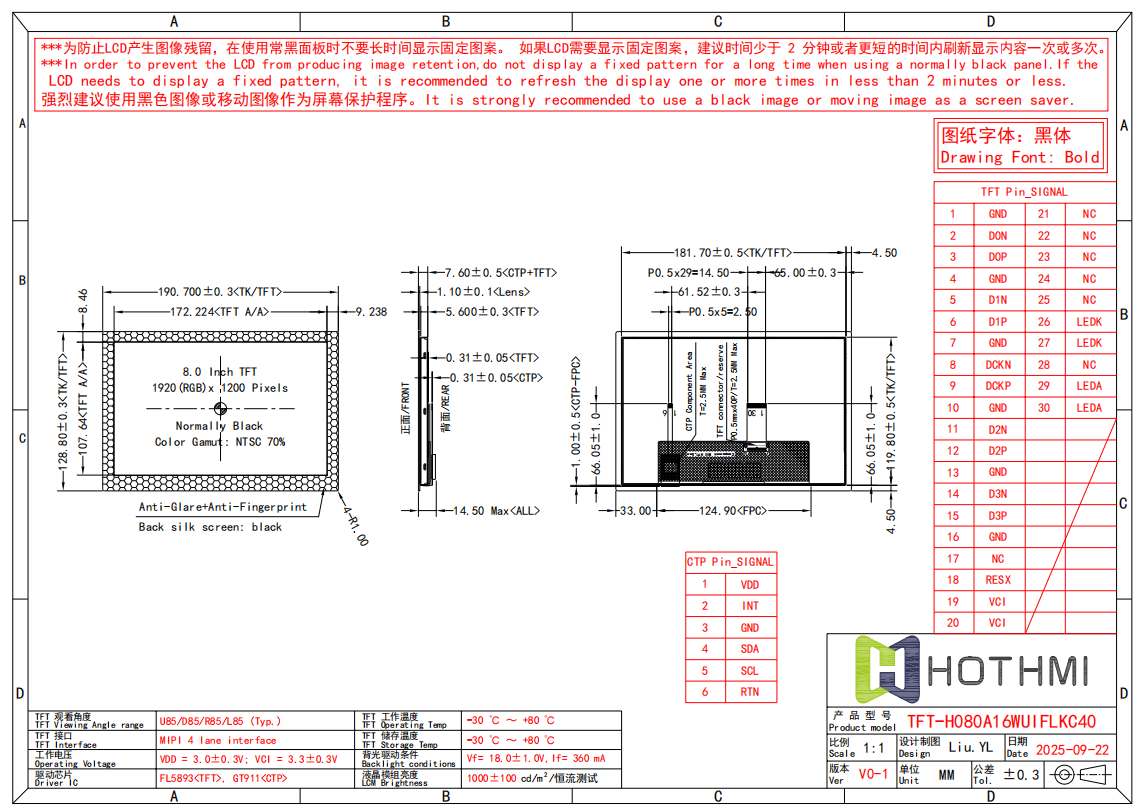

| 8 Inch High Brightness TFT LCD Display With Capacitive Touch Panel TFT-H080A16WUIFLKC40 | TFT Display | 1920x1200 |
|
190.7x128.8x14.5 | 8.0 | 8.0 | 172.224x107.64 | IPS | 1000cd/M2 | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | FL5893 |
